In modern industrial environments, the separation of physical workspaces is often a complex challenge requiring a balance between visibility, airflow, material durability, and personnel safety. Among the various solutions available, the chainmail mesh curtain has emerged as a technically specific product designed for applications where traditional fabric curtains, plastic strip doors, or rigid partitions prove inadequate. This article provides a comprehensive examination of chainmail mesh curtains, exploring their metallurgical composition, structural mechanics, installation parameters, and sector-specific applications. The information presented is based on standardized engineering principles and field performance data, with reference to manufacturing specifications provided by Hebei Linchuan Safety Protective Equipment Co., LTD.

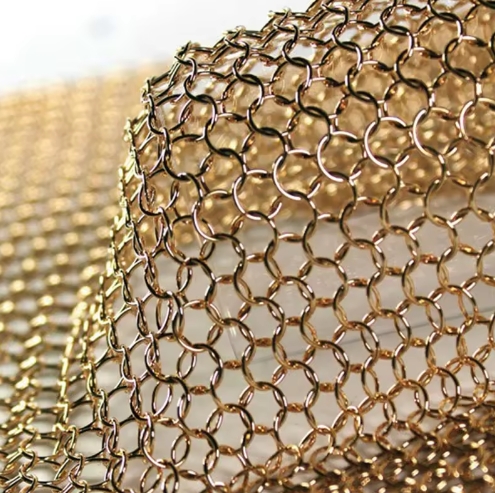

A chainmail mesh curtain is a flexible, articulated barrier constructed from interlinked metal rings. Unlike woven wire mesh, which relies on rigid intersections, chainmail utilizes a four-in-one interlinking pattern—a technique historically used in armor—that allows each ring to move independently while maintaining tensile strength across the entire assembly. The fundamental structural unit of these curtains consists of metallic rings, typically fabricated from stainless steel, galvanized steel, or aluminum alloy. Each ring is closed through either welding or riveting to ensure that the integrity of the link remains intact under dynamic loading conditions. The diameter of the rings generally ranges from 5 millimeters to 15 millimeters, depending on the required cut resistance, visibility, and weight specifications. The interlocking pattern creates a flexible sheet that can be suspended from an overhead track system. This configuration allows the curtain to part upon impact and return to its resting position without permanent deformation. Field tests conducted in high-traffic industrial corridors indicate that properly installed chainmail assemblies can withstand over one hundred thousand separation events—such as personnel or forklift passage—before exhibiting measurable wear on link contact points.
The performance longevity of a chainmail mesh curtain is directly determined by the material grade used in its construction. Hebei Linchuan Safety Protective Equipment Co., LTD specifies three primary material categories based on environmental exposure and mechanical stress requirements.
Stainless steel constitutes the most common material for chainmail curtains used in food processing and chemical environments. Grade 304 stainless steel offers a chromium content of 18 to 20 percent and nickel content of 8 to 10.5 percent, providing adequate corrosion resistance against organic acids and alkaline cleaning agents commonly used in sanitation protocols. For environments with continuous exposure to chlorides, such as seafood processing facilities or coastal manufacturing plants, Grade 316 stainless steel is utilized. The addition of molybdenum—typically 2 to 3 percent by mass—enhances pitting corrosion resistance. Laboratory corrosion tests demonstrate that Grade 316 chainmail maintains structural integrity after 1,500 hours of salt spray exposure, whereas unprotected carbon steel equivalents show significant oxidation within 72 hours.
In applications where corrosion is not the primary concern but mechanical impact resistance is paramount, galvanized steel rings are employed. The hot-dip galvanizing process applies a zinc coating with a thickness ranging from 45 to 85 micrometers. This coating provides sacrificial protection, extending the operational life of the curtain in dry industrial environments such as automotive assembly lines or logistics distribution centers. Data from wear tests indicate that galvanized chainmail links in dry, abrasive environments exhibit a wear depth of less than 0.1 millimeters after 50,000 cycles of contact with pallet edges, demonstrating suitable durability for material handling applications.
For manual installation scenarios or applications requiring reduced track loading, aluminum alloy rings—typically 6061-T6 or equivalent temper—offer a weight reduction of approximately 60 percent compared to stainless steel equivalents. While aluminum provides lower tensile strength, with yield strengths around 240 megapascals compared to 515 megapascals for annealed 304 stainless steel, its application is appropriate in areas such as cleanrooms or manual workstations where impact frequency is low and overhead structure limitations exist.
The primary functional advantage of chainmail mesh curtains over alternative barrier systems lies in their cut resistance and abrasion tolerance. Unlike polymeric strip curtains, which can be severed by sharp edges or hot projectiles, chainmail maintains barrier integrity under conditions involving metal shavings, glass fragments, or welding spatter. Cut resistance is measured using standardized testing protocols adapted from personal protective equipment standards. For a chainmail curtain constructed with 7-millimeter diameter stainless steel rings of 1.2-millimeter wire thickness, the assembly achieves a cut protection level equivalent to ANSI/ISEA 105 Level A4 or higher. This translates to a minimum cut force resistance of 2,500 grams on the standardized test blade, with many configurations exceeding 3,500 grams. Abrasion resistance data further supports the use of chainmail in high-friction environments. In continuous contact scenarios—such as curtains installed at conveyor transfer points—the wear rate of stainless steel chainmail averages 0.05 millimeters per year under normal operating conditions. By contrast, PVC strip curtains in identical environments typically require replacement every 12 to 18 months due to edge fraying and surface scoring.
One of the critical limitations of polymer-based barrier systems is their performance under thermal stress. Chainmail mesh curtains offer inherent fire resistance due to their metallic composition. Stainless steel, galvanized steel, and aluminum alloys are classified as non-combustible materials under building code classifications such as ASTM E136. In high-temperature environments, chainmail maintains dimensional stability up to the point of metallurgical transformation. For stainless steel, this stability extends to approximately 800 degrees Celsius, beyond which creep deformation may occur under sustained loading. For applications involving welding arcs or grinding sparks, chainmail curtains provide a physical barrier that does not ignite, melt, or produce toxic fumes—unlike PVC, which begins to soften at 65 degrees Celsius and can emit hydrogen chloride gas when decomposed. Thermal conductivity also plays a role in application suitability. While metal conducts heat more efficiently than polymers, the open interlink structure of chainmail allows for convective cooling. Temperature mapping studies show that the surface temperature of a chainmail curtain exposed to intermittent welding spatter stabilizes at 40 to 50 degrees Celsius above ambient, whereas solid metal panels in similar conditions can exceed 200 degrees Celsius, posing contact burn hazards to personnel.
The operational effectiveness of a chainmail mesh curtain is contingent upon the supporting track system. Overhead tracks must accommodate both the static weight of the curtain and dynamic forces generated during passage. Standard track systems for industrial chainmail curtains utilize either stainless steel or aluminum profiles with roller carriers. Static load calculations are performed based on the weight per square meter of the chainmail assembly. A typical stainless steel chainmail curtain with 9-millimeter rings and 1.4-millimeter wire thickness has a weight of approximately 18 to 22 kilograms per square meter. For an opening measuring 4 meters in width and 3 meters in height, the total static load ranges from 216 to 264 kilograms. Track systems designed for such applications incorporate wheeled carriers rated for a minimum dynamic load capacity of 500 kilograms to account for impact forces. The coefficient of friction between the chainmail links and the track carrier is another engineering consideration. High-quality systems utilize nylon or acetal rollers with stainless steel axles, maintaining a static friction coefficient below 0.15. This ensures that curtains can be manually parted with a force not exceeding 20 newtons per 100 kilograms of curtain weight, complying with ergonomic accessibility standards.
Chainmail mesh curtains are extensively utilized in food processing facilities where hygiene standards mandate the use of non-porous, cleanable surfaces. Regulatory frameworks such as the Food Safety Modernization Act (FSMA) in the United States and the British Retail Consortium (BRC) Global Standard require that barriers in food production areas be designed to prevent harborage of pathogens and allow for effective sanitation. In meat, poultry, and seafood processing plants, chainmail curtains serve as zone separators between raw product handling areas and cooked or ready-to-eat sections. The non-porous metallic surface does not absorb moisture or organic material, reducing the risk of Listeria monocytogenes or Salmonella biofilm formation. Validation studies using ATP bioluminescence testing show that stainless steel chainmail surfaces achieve cleanliness levels below 10 relative light units after standard clean-in-place procedures, compared to plastic strip curtains which often exceed 200 relative light units due to surface scratching and polymer degradation. The open-link structure also facilitates airflow management. In facilities requiring temperature differentials between zones—such as a -10 degrees Celsius freezer adjacent to a 10 degrees Celsius processing area—chainmail curtains provide a barrier that reduces cold air migration. Data from facility energy audits indicate that installation of chainmail curtains at freezer entrances reduces compressor runtime by 12 to 18 percent compared to open doorways, while still allowing for high-frequency equipment and personnel movement.
Welding environments present a combination of hazards including ultraviolet radiation, sparks, molten metal spatter, and mechanical impacts. Chainmail mesh curtains are employed as perimeter barriers in welding cells to contain these hazards while maintaining visibility and ventilation. The metallic construction of chainmail provides a grounding path for static electricity, eliminating the static charge accumulation issues associated with PVC curtains. In welding applications, this is a critical safety parameter because static discharge in environments with flammable gases or dust presents explosion risks. Ultraviolet (UV) radiation protection is another functional attribute. While chainmail does not absorb UV radiation, its physical structure attenuates UV transmission through occlusion. A chainmail curtain with 7-millimeter rings and an open area percentage of approximately 45 percent reduces UV transmission by a factor proportional to the solid surface area. Personnel working behind such curtains experience UV exposure levels equivalent to wearing a shade 3 to 5 welding filter, though supplementary eye protection remains necessary for direct arc viewing. Spatter adhesion studies demonstrate that stainless steel chainmail accumulates less than 0.2 grams of weld spatter per square centimeter per 100 hours of welding activity. This low adhesion rate allows for periodic cleaning by mechanical agitation, whereas fabric welding curtains require replacement once spatter accumulation exceeds 20 percent of surface area.
In high-volume distribution centers and manufacturing logistics areas, chainmail curtains are installed at doorways separating automated storage and retrieval systems from manual picking zones. The primary requirement in these applications is impact resistance and rapid self-closing functionality. Chainmail curtains used in logistics environments are often weighted at the bottom edge with stainless steel bars to facilitate automatic closing. The closing speed is governed by gravity and track friction, with well-maintained systems achieving full closure within 2 to 4 seconds after passage. This rapid closure minimizes the time during which the opening is unprotected, reducing the risk of unauthorized access or environmental exchange. Impact force tolerance is a key specification. Chainmail curtains withstand direct impacts from forklifts with load capacities up to 2,500 kilograms when the impact occurs at speeds below 8 kilometers per hour. The flexible nature of the chainmail absorbs impact energy through link articulation rather than transferring the full force to the track structure. Structural analysis shows that peak force transmission to the track is reduced by approximately 70 percent compared to rigid swing doors under equivalent impact conditions.
Proper installation and scheduled maintenance are essential for maximizing the service life of chainmail mesh curtains. Installation begins with structural assessment of the supporting overhead beam. The beam must be capable of supporting the total curtain weight plus a dynamic load factor of 1.5 times the static weight, as recommended by engineering standards for overhead sliding doors. Track alignment is critical. Horizontal tracks must be installed with a deviation of less than 2 millimeters per linear meter to prevent binding. Vertical drop alignment should be plumb within 5 millimeters over the full height of the curtain. Misalignment results in uneven loading on rollers and accelerated wear of link contact points. Maintenance intervals are typically set at 6-month periods for general industrial environments and 3-month intervals for food processing or high-abrasion applications. Maintenance activities include: Inspection of link integrity, with replacement of any rings showing wear exceeding 25 percent of wire diameter. Cleaning of accumulated debris using pressurized water or steam for stainless steel assemblies. Lubrication of roller bearings using food-grade grease in food processing environments. Verification of track alignment and tightening of mounting hardware. Lifecycle cost analysis comparing chainmail curtains to PVC strip curtains over a 10-year period shows that while initial capital expenditure for chainmail is higher by a factor of 3 to 5, total cost of ownership is lower due to extended service life. Chainmail curtains typically have an operational lifespan of 15 to 20 years in industrial applications, whereas PVC strip curtains require replacement every 2 to 3 years under comparable conditions.
Industrial chainmail mesh curtains are not standardized products but are engineered to meet specific opening dimensions, traffic frequency, and environmental conditions. Hebei Linchuan Safety Protective Equipment Co., LTD provides customization across several parameters to ensure optimal performance.
Ring diameter selection influences both visibility and strength. Smaller diameters, such as 5 to 7 millimeters, provide higher density and improved particle containment but reduce visibility. Larger diameters, 10 to 15 millimeters, offer greater visibility and reduced weight but have lower containment of small debris. Wire thickness ranges from 1.0 to 1.8 millimeters, with thicker wires providing higher tensile strength but increasing overall weight.
The open area percentage—the proportion of the curtain surface not occupied by metal—affects airflow, visibility, and sound transmission. Standard chainmail weaves provide open area percentages ranging from 35 to 55 percent. For applications requiring maximum visibility, such as security checkpoints, a larger ring diameter and thinner wire are specified to achieve open areas up to 65 percent.
Vertical edges of chainmail curtains require reinforcement to maintain structural integrity. Options include welded edge wires, stainless steel edge binding, or flexible polyurethane edging. Welded edge wires are specified for high-traffic applications where the curtain edges repeatedly contact door frames or walls. Polyurethane edging is used in applications where the curtain may contact personnel or sensitive equipment, providing a cushioned interface.
Chainmail mesh curtains manufactured for industrial applications must comply with relevant safety and material standards. While there is no single global standard for chainmail curtains as a product category, individual components and performance characteristics are governed by existing standards. For material composition, compliance with ASTM A240 for stainless steel sheet and wire ensures consistency in chemical composition and mechanical properties. For installations in food processing facilities, compliance with FDA regulations for food contact surfaces is required; stainless steel grades 304 and 316 are generally recognized as safe for food contact when properly maintained. For fire safety, chainmail curtains are evaluated under building codes such as the International Building Code (IBC) for use as smoke barriers or fire-resistive assemblies when combined with appropriate framing and closing mechanisms. In many jurisdictions, chainmail alone does not constitute a rated fire barrier but may be used as a spark containment curtain when installed in accordance with local fire marshal requirements. For occupational safety, installations in industrial environments must comply with OSHA regulations regarding machine guarding and pedestrian safety. Chainmail curtains used as machine guards must be installed with interlocks or positioning that prevents access to hazardous moving parts during operation.
A quantitative comparison of chainmail mesh curtains against alternative barrier systems provides context for selection decisions.
- **Durability:** Chainmail has an operational lifespan of 15 to 20 years; PVC strips last 2 to 3 years in high-traffic environments. - **Temperature Range:** Chainmail operates from cryogenic temperatures to 800 degrees Celsius; PVC is limited to -20 to 60 degrees Celsius. - **Cleanability:** Chainmail achieves ATP readings below 10 RLU after cleaning; PVC surfaces develop scratches that harbor bacteria, with typical ATP readings of 150 to 300 RLU. - **Cut Resistance:** Chainmail resists cuts from sharp objects; PVC strips are easily severed. - **Initial Cost:** Chainmail has higher initial cost by factor of 3 to 5.
- **Impact Tolerance:** Chainmail absorbs impacts without damage; roll-up doors require repair or replacement after significant impacts. - **Opening Speed:** Chainmail curtains are manually parted with return times of 2 to 4 seconds; automated roll-up doors have cycle times of 5 to 10 seconds. - **Complexity:** Chainmail has no electrical or pneumatic components requiring maintenance; roll-up doors have motors, sensors, and controls with associated failure rates.
- **Flexibility:** Chainmail allows for passage at multiple points along the curtain length; rigid partitions require dedicated doorways. - **Ventilation:** Chainmail provides open area percentage of 35 to 55 percent, allowing natural airflow; rigid partitions require separate ventilation systems. - **Space Requirements:** Chainmail requires only overhead track space; rigid partitions require floor space for swing radius or sliding track length.
The production of chainmail mesh curtains requires specialized manufacturing equipment and quality control protocols. Hebei Linchuan Safety Protective Equipment Co., LTD operates production facilities equipped with automated ring winding machines, resistance welding units for ring closure, and assembly tables for interlinking. Quality assurance protocols include: Tensile testing of individual rings, with each batch tested to ensure break strength meets specifications. For 1.4-millimeter stainless steel wire, minimum break strength is 350 newtons per ring. Dimensional inspection of ring diameter and wire thickness using optical comparators, with tolerances held to ±0.1 millimeters. Weld integrity verification through visual inspection and random destructive testing, with acceptable weld strength defined as 90 percent of base material strength. Final assembly inspection to verify interlink pattern consistency and edge reinforcement integrity. Production capacity data indicates capability to manufacture chainmail panels up to 6 meters in height and unlimited width through modular panel joining. Lead times for custom configurations average 15 to 20 business days from receipt of final specifications.
Chainmail mesh curtains represent a technically differentiated solution within the industrial barrier market. Their value proposition is based on quantifiable performance metrics: cut resistance measured in standardized test levels, service life measured in decades rather than years, corrosion resistance validated through standardized test cycles, and thermal performance that eliminates fire hazard concerns. The selection of a chainmail curtain system requires analysis of the specific application environment, including chemical exposure, temperature range, traffic frequency, and hygiene requirements. When specified correctly and installed with appropriate track systems, chainmail curtains provide a total cost of ownership advantage in applications where durability, cleanability, and impact resistance are critical. For industrial facilities seeking to optimize separation strategies, chainmail mesh curtains offer a solution supported by engineering data and field performance history. Manufacturers such as Hebei Linchuan Safety Protective Equipment Co., LTD provide the technical expertise and production capabilities necessary to deliver systems tailored to the mechanical and environmental demands of each installation.
