Stainless steel ring mesh is a specialized architectural and industrial material composed of interlocked stainless steel rings. Unlike woven wire mesh or expanded metal, ring mesh derives its structural characteristics from the mechanical connection between individual rings. Each ring passes through four adjacent rings, creating a flexible yet dimensionally stable sheet. This construction method produces a material that combines high tensile strength with directional flexibility.
Manufacturers produce stainless steel ring mesh in various alloy grades, ring diameters, and wire thicknesses. The most common material specifications include AISI 304 and AISI 316 stainless steel. AISI 304 provides general corrosion resistance suitable for indoor and covered applications. AISI 316 contains molybdenum, which significantly improves resistance to chlorides and marine environments. For projects requiring enhanced durability, AISI 316L offers lower carbon content that reduces the risk of intergranular corrosion after welding or high-temperature exposure.
The production process begins with stainless steel wire drawn to precise diameters. The wire is wound into coils, cut into individual rings, and then linked together through a specialized knitting or linking process. Mechanical linking ensures consistent aperture size and uniform load distribution across the entire panel. Unlike welded mesh, ring mesh has no heat-affected zones that could become preferential sites for corrosion initiation.
Stainless steel ring mesh exhibits mechanical properties that distinguish it from other metal mesh forms. The interlocking ring configuration allows the material to elongate under tension while maintaining structural integrity. Tensile strength varies based on ring diameter, wire gauge, and alloy composition. Standard industrial grades achieve tensile strengths ranging from four hundred to eight hundred megapascals, depending on the specific temper of the stainless steel wire.
Load testing demonstrates that stainless steel ring mesh panels measuring one meter by two meters can sustain distributed loads exceeding five hundred kilograms before permanent deformation occurs. The failure mode of ring mesh differs from welded mesh. In welded mesh, failure typically occurs at weld points due to stress concentration. In ring mesh, failure occurs through ring deformation or wire fracture, which provides visible warning signs before complete structural failure.
Elongation at break for stainless steel ring mesh typically ranges from fifteen percent to thirty-five percent, depending on ring geometry. This elongation capacity makes ring mesh suitable for applications requiring energy absorption, such as rockfall protection systems and animal enclosure barriers. The material also shows excellent fatigue resistance under cyclic loading conditions. Testing data indicates that properly specified ring mesh maintains more than ninety percent of its original tensile strength after one million load cycles at fifty percent of ultimate tensile strength.
The corrosion resistance of stainless steel ring mesh directly correlates with the chosen alloy grade and the environmental exposure conditions. AISI 304 stainless steel ring mesh performs adequately in atmospheric environments with low chloride concentrations. Typical service life for AISI 304 in sheltered indoor applications exceeds twenty-five years without significant surface degradation. However, in coastal environments with airborne salt, AISI 304 may show pitting corrosion after five to ten years.
AISI 316 stainless steel ring mesh provides substantially better resistance to chlorides. The addition of two to three percent molybdenum by weight creates a more stable passive film on the steel surface. In marine atmosphere testing, AISI 316 ring mesh shows pitting rates below twenty micrometers per year, equating to a service life exceeding forty years for standard wire gauges. For immersion applications or continuous exposure to deicing salts, AISI 316L provides additional resistance to sensitization.
Surface finish also affects corrosion performance. Bright annealed finishes offer optimal corrosion resistance because the annealing process removes surface oxides and creates a uniform passive layer. Pickled finishes are also acceptable. Mechanically polished finishes may have embedded abrasive particles that can initiate localized corrosion. For most architectural applications, a 2B mill finish or a number four brushed finish provides appropriate corrosion resistance while maintaining aesthetic appearance.
Stainless steel ring mesh is non-combustible and retains structural properties at elevated temperatures. The material carries a Class A fire rating under ASTM E84 testing standards. Unlike polymer-based meshes or coated fabrics, stainless steel ring mesh does not produce toxic smoke or flaming droplets during fire exposure. This property makes ring mesh suitable for fire safety barriers, ventilation screens, and building facade systems where fire spread prevention is required.
Thermal expansion behavior follows standard stainless steel coefficients. Austenitic stainless steels, including AISI 304 and AISI 316, have thermal expansion coefficients of approximately seventeen micrometers per meter per degree Celsius. For a ten-meter-long panel experiencing a fifty-degree Celsius temperature change, thermal expansion amounts to approximately eight and a half millimeters. Designers must accommodate this movement through expansion gaps or flexible mounting systems.
At temperatures exceeding four hundred degrees Celsius, stainless steel begins to lose tensile strength through recrystallization and grain growth. Continuous operation at temperatures above five hundred degrees Celsius is not recommended for load-bearing applications. However, for short-duration fire exposure, stainless steel ring mesh maintains sufficient integrity to prevent falling debris or contain fire spread. For applications requiring fire resistance ratings, the mounting system and edge details must be designed to accommodate thermal expansion without buckling or pulling free from anchors.

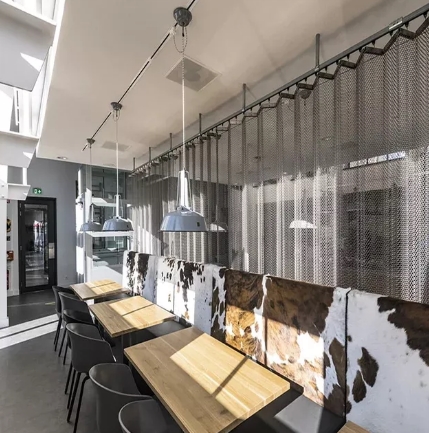

Stainless steel ring mesh has become a preferred material for architectural facade systems, sunscreen screens, and interior design elements. The open area percentage of ring mesh typically ranges from forty percent to seventy percent, depending on ring diameter and wire thickness. This open area allows natural ventilation and daylight transmission while providing solar shading and visual screening.
Building owners and architects select stainless steel ring mesh for facade applications because the material offers durability with minimal maintenance requirements. A study of installed ring mesh facades in urban environments shows that natural rainfall is sufficient to keep the material clean in most locations. In areas with heavy industrial pollution or bird activity, annual cleaning with mild detergent and water restores the original appearance. Unlike painted or coated metal meshes, stainless steel ring mesh does not require repainting or recoating over its service life.
The flexibility of ring mesh allows installation on curved surfaces and complex geometries. Panels can be fabricated to match curved building contours with radii as small as three hundred millimeters for lighter gauge meshes. This formability enables architects to create organic building shapes without the cost of custom tooling or complex support structures. Several notable commercial buildings worldwide utilize stainless steel ring mesh as a second-skin facade, creating a distinctive visual texture while improving building energy performance.
Hebei Linchuan Safety Protective Equipment Co., LTD manufactures stainless steel ring mesh for industrial safety applications including machine guarding, perimeter security barriers, and fall protection systems. The combination of high visibility, mechanical strength, and corrosion resistance makes ring mesh suitable for harsh industrial environments.
Machine guarding applications require mesh with aperture sizes small enough to prevent finger or hand entry while maintaining visibility of the guarded hazard. For general industrial use, apertures of twelve millimeters by twelve millimeters or smaller prevent finger contact with moving machinery. Stainless steel ring mesh meets these requirements while providing better impact resistance than perforated plastic panels or expanded metal with equivalent open area.
Perimeter security barriers utilize stainless steel ring mesh with larger ring diameters and heavier wire gauges. A typical security-grade ring mesh uses four-millimeter diameter wire with rings of fifty millimeters in diameter. This configuration resists cutting with bolt cutters or wire cutters because cutting individual rings does not release adjacent rings. Testing by security product laboratories shows that ring mesh requires significantly more cutting operations than welded mesh to create an opening of equivalent size. A three-hundred-millimeter opening in welded mesh may require six cuts. The same opening in ring mesh may require more than twenty cuts due to the interlocking ring geometry.
Zoo habitats, wildlife sanctuaries, and veterinary facilities specify stainless steel ring mesh for animal enclosures due to its strength, visibility, and safety characteristics. Primates, big cats, and bears can apply substantial forces to enclosure barriers. Ring mesh withstands these forces while remaining flexible enough to absorb impact loads without brittle failure.
The primary advantage of ring mesh for animal enclosures is the absence of sharp edges. Each ring is closed and smooth, reducing the risk of injury to animals that contact the barrier. Welded mesh may develop sharp protrusions at weld points if the mesh is deformed or if welds break under load. Ring mesh distributes loads across multiple rings, so localized deformation does not create hazardous sharp edges.
Aperture size selection for animal enclosures follows established guidelines based on animal species. For small primates and birds, maximum aperture of twenty-five millimeters prevents head or limb entrapment. For large carnivores and great apes, apertures up to seventy-six millimeters are acceptable when combined with appropriate ring diameter and wire gauge. Hebei Linchuan Safety Protective Equipment Co., LTD provides engineering support for enclosure designers to select appropriate mesh specifications based on species, animal size, and behavioral characteristics.
The mining industry uses stainless steel ring mesh for rockfall protection, screen decking, and ventilation control systems. Ring mesh performs particularly well in applications requiring abrasion resistance and impact absorption. The interlocking ring configuration allows the mesh to conform to irregular surfaces while maintaining consistent coverage.
For underground support systems, stainless steel ring mesh is installed between rock bolts to contain loose material and prevent rock falls. Testing by mining safety organizations demonstrates that ring mesh systems reduce injury rates from rock falls by more than sixty percent compared to unmeshed excavations. The mesh provides visual confirmation of ground movement because deformed rings are visible from a distance, providing early warning of changing ground conditions.
Vibration screening applications in aggregate processing benefit from the wear resistance of stainless steel ring mesh. The material withstands continuous impact from falling rocks and abrasive sliding of material across the mesh surface. Field data from operating quarries indicates that stainless steel ring mesh screen decks achieve service lives three to five times longer than carbon steel mesh in the same application. The higher initial cost of stainless steel is offset by reduced downtime for screen replacement and lower labor costs for maintenance.
Proper installation of stainless steel ring mesh requires appropriate hardware and attachment methods. The mesh can be tensioned between structural members or draped over supporting frames. For facade applications, typical installation uses aluminum or stainless steel clamping bars that grip the mesh perimeter. Clamp bars distribute tension evenly across the mesh edge, preventing local stress concentrations that could cause ring deformation.
Tensioning specifications depend on panel size and application requirements. For architectural sunscreen applications, tension of five hundred to one thousand newtons per meter of panel width provides adequate flatness without overstressing the mesh. For security barriers requiring high rigidity, tensions up to two thousand newtons per meter may be used. Higher tensions require stronger support structures and more robust edge attachments.
Fasteners used with stainless steel ring mesh must be compatible with the mesh alloy to prevent galvanic corrosion. Stainless steel fasteners of the same or similar alloy grade are recommended. Carbon steel fasteners will corrode rapidly when in contact with stainless steel in the presence of moisture, leading to fastener failure and potential system collapse. Aluminum fasteners may be acceptable in dry indoor environments but are not recommended for exterior applications due to galvanic potential.
Stainless steel ring mesh requires minimal maintenance when correctly specified for the application environment. In most atmospheric exposures, natural rain washing removes accumulated dust and airborne particles. In environments with heavy industrial emissions or high bird activity, annual cleaning with water and a soft brush maintains the appearance. Pressure washing is acceptable at pressures below one thousand pounds per square inch when the nozzle is held at least three hundred millimeters from the mesh surface to avoid ring deformation.
Service life projections for stainless steel ring mesh vary by environment and alloy selection. In rural atmospheric environments, AISI 304 ring mesh typically exceeds thirty years of service before any visible corrosion appears. In industrial environments with moderate pollution, AISI 304 may show light surface rusting after fifteen to twenty years, but structural integrity remains intact for decades beyond the appearance of surface discoloration.
In coastal environments within three kilometers of salt water, AISI 316 ring mesh is the minimum recommended specification. Field inspections of AISI 316 ring mesh installed on coastal buildings show minimal corrosion after twenty years of exposure. In severe marine environments such as offshore platforms or beachfront installations, AISI 316L with a bright annealed finish provides the best long-term performance. Some manufacturers offer enhanced corrosion resistance through electropolishing, which removes surface iron contamination and enriches the chromium oxide layer.
The initial material cost of stainless steel ring mesh is higher than carbon steel mesh or polymer mesh products. However, life cycle cost analysis often favors stainless steel due to reduced maintenance and replacement requirements. A direct cost comparison for a typical building facade application shows the following approximate values over a twenty-year period.
Carbon steel mesh with paint coating has a lower initial cost, approximately one-third the cost of stainless steel mesh. However, the paint coating requires repainting every three to five years in exterior applications. Labor costs for surface preparation and repainting accumulate to exceed the initial material cost within ten years. Additionally, the building must provide access for repainting, which may require scaffolding or aerial lifts. After fifteen years, carbon steel mesh typically requires complete replacement due to corrosion under the paint film.
Polymer-coated polyester or nylon mesh has an initial cost similar to carbon steel mesh. Ultraviolet exposure degrades polymer materials, with significant loss of tensile strength occurring after five to eight years. By year ten, polymer mesh requires replacement. The disposal cost of used polymer mesh and the environmental impact of manufacturing replacement material add to the total life cycle cost.
Stainless steel ring mesh has the highest initial cost but requires no painting, no regular maintenance beyond occasional cleaning, and no replacement within the twenty-year analysis period. When the residual value of the stainless steel mesh as scrap metal is included, the net life cycle cost of stainless steel is often lower than both carbon steel and polymer alternatives for applications exceeding fifteen years of required service life.
Manufacturers of stainless steel ring mesh should comply with relevant industry standards for material properties and manufacturing tolerances. Hebei Linchuan Safety Protective Equipment Co., LTD produces ring mesh that meets or exceeds the requirements of applicable ASTM and ISO standards for stainless steel wire products. The company maintains quality control procedures that include wire tensile testing, dimensional inspection of ring geometry, and corrosion testing of finished mesh samples.
Typical manufacturing tolerances for stainless steel ring mesh include ring diameter variation within plus or minus three percent of nominal dimension. Wire diameter tolerance follows ASTM A313 specifications, typically plus or minus 0.02 millimeters for wire diameters under two millimeters. Aperture size variation across a panel should not exceed five percent of the nominal aperture dimension. Panel dimensions are typically held to plus or minus five millimeters for panels up to five meters in length.
Customers should request material test reports and certification of alloy composition for each production lot. Verification of AISI 304 or AISI 316 chemistry ensures the mesh will provide the expected corrosion resistance. For critical applications, independent third-party testing of production samples provides additional quality assurance. Testing methods may include ferroxyl testing for free iron contamination, salt spray testing per ASTM B117, and tensile testing of mesh samples.
Stainless steel ring mesh offers a combination of mechanical strength, corrosion resistance, and design flexibility that serves diverse applications from building facades to industrial safety barriers. The material's interlocking ring construction provides unique properties including directional flexibility, impact absorption, and resistance to progressive cutting damage. Proper selection of alloy grade, ring geometry, and wire diameter based on application requirements ensures optimal performance and long service life.
Life cycle cost analysis demonstrates that the higher initial cost of stainless steel ring mesh is justified by reduced maintenance and replacement requirements in long-term applications. With service lives exceeding thirty years in most environments and minimal maintenance needs, stainless steel ring mesh represents a durable solution for permanent installations.
For specific product specifications, technical data, or application engineering support, customers are encouraged to consult with manufacturers such as Hebei Linchuan Safety Protective Equipment Co., LTD to determine the appropriate ring mesh configuration for their project requirements.
