Author: Site Editor Publish Time: 2026-03-27 Origin: Site
In industrial environments where safety, hygiene, and durability are paramount, physical barriers must perform under demanding conditions. Traditional fabric curtains, vinyl strip doors, and plastic barriers often fall short when exposed to high temperatures, repeated impact, abrasive materials, or stringent sanitation requirements. Stainless steel chainmail mesh curtains have emerged as a specialized solution for facilities that require robust separation without compromising visibility, airflow, or accessibility.

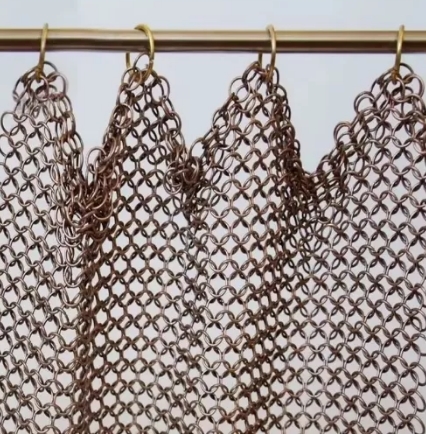

These curtains consist of interlocking stainless steel rings formed into a flexible, continuous mesh sheet. Unlike solid metal barriers, chainmail curtains provide a physical barrier that remains pliable, allowing personnel, equipment, and materials to pass through while maintaining separation between work zones. Their applications span food processing, industrial manufacturing, commercial kitchens, and specialized laboratory environments.
Hebei Linchuan Safety Protective Equipment Co., LTD manufactures stainless steel chainmail mesh products designed to meet the mechanical and hygienic demands of these industrial sectors. This guide provides a comprehensive examination of the material specifications, performance characteristics, installation considerations, and selection parameters for stainless steel chainmail mesh curtains.
The performance of a chainmail mesh curtain begins with the raw materials and the precision of the ring interlocking process. Stainless steel is the standard material for these applications due to its corrosion resistance, strength-to-weight ratio, and compatibility with sanitation protocols.
The grade of stainless steel directly influences the curtain’s resistance to corrosion, temperature extremes, and chemical exposure.
Type 304 Stainless Steel: This is the most commonly used grade for chainmail curtains in food processing and general industrial applications. It contains approximately 18% chromium and 8% nickel, providing good resistance to oxidation and corrosion from most food acids, cleaning agents, and ambient moisture. Type 304 is suitable for environments where temperatures do not exceed approximately 800°F (427°C) for extended periods.
Type 316 Stainless Steel: For facilities handling saltwater, brine, or highly acidic substances, Type 316 stainless steel is specified. The addition of molybdenum (2-3%) enhances corrosion resistance against chlorides and industrial chemicals. This grade is commonly used in seafood processing plants, marine environments, and pharmaceutical manufacturing where aggressive cleaning agents are employed.
Type 430 Stainless Steel: In applications where corrosion exposure is minimal and cost considerations are primary, Type 430 may be used. It has lower nickel content and is magnetic, with reduced corrosion resistance compared to the 300-series grades.
Chainmail mesh curtains are characterized by two key dimensional parameters: the inner diameter of the individual rings and the thickness of the wire used to form them.
Ring Diameter: Common ring diameters range from 3/16 inch (approximately 4.8 mm) to 3/8 inch (approximately 9.5 mm). Smaller rings produce a tighter mesh, which is advantageous for applications requiring containment of small particles or enhanced resistance to cutting or puncturing. Larger rings offer greater flexibility and airflow but provide less fine-particle containment.
Wire Gauge: Wire thickness is typically measured in gauge or millimeters. Common specifications include 19 gauge (approximately 1.0 mm) to 14 gauge (approximately 2.0 mm). Heavier wire gauges increase the curtain’s durability and impact resistance but also add weight, which must be supported by the mounting structure.
The combination of ring diameter and wire gauge determines the curtain’s weight per square foot, flexibility, and mechanical strength. Manufacturers such as Hebei Linchuan Safety Protective Equipment Co., LTD provide specifications sheets that detail these parameters to assist engineers and facility managers in selecting the appropriate configuration.
Stainless steel chainmail mesh curtains are selected for their ability to withstand mechanical stresses that would destroy fabric or plastic alternatives. Understanding these performance characteristics is essential for proper application.
In industrial environments, barriers are frequently struck by moving equipment, forklifts, carts, and products in transit. Chainmail mesh curtains absorb impact forces through the articulation of individual rings rather than through deformation of a solid panel. This characteristic allows the curtain to return to its original configuration after impact, provided the force does not exceed the yield strength of the rings.
Testing data indicates that chainmail curtains with 3/8-inch rings constructed from 16-gauge wire can withstand repeated impacts from loads exceeding 100 pounds at low speeds without permanent deformation. This makes them suitable for high-traffic openings where flexible barriers are required to protect temperature zones or contain debris.
Unlike fabric curtains that can be sliced by sharp edges or torn by abrasive materials, stainless steel chainmail provides high resistance to cutting and abrasion. The interlocking ring structure distributes localized forces across multiple rings, preventing failure from a single point of contact.
In facilities handling sharp metal parts, glass, or bone-in meat products, this cut resistance is a critical safety feature. The curtain serves not only as a separation barrier but also as a protective element that prevents sharp debris from traveling between work zones.
Stainless steel chainmail maintains its structural integrity across a wide temperature range. While fabric curtains may degrade, melt, or become brittle under thermal stress, chainmail mesh remains stable.
Low-Temperature Performance: Stainless steel retains ductility at temperatures as low as -300°F (-184°C), making it suitable for freezer environments and cold storage facilities. The rings do not become brittle, and the curtain remains flexible enough to allow passage.
High-Temperature Performance: Type 304 and 316 stainless steels can withstand continuous exposure to temperatures up to approximately 1,500°F (816°C) before significant oxidation occurs. This makes chainmail curtains suitable for applications near ovens, kilns, or welding operations where heat resistance is required.
In food processing, pharmaceutical, and cleanroom environments, the ability to clean and sanitize barriers is as important as their mechanical performance. Stainless steel chainmail mesh curtains offer distinct advantages in this regard.
Stainless steel provides a non-porous surface that does not absorb moisture, oils, or organic matter. This property prevents the growth of bacteria, mold, and fungi that can occur in fabric curtains or vinyl barriers that develop cracks and crevices over time. Routine cleaning with standard industrial sanitizers effectively removes surface contaminants from chainmail mesh.
The open structure of chainmail mesh allows for drainage of liquids and circulation of air. In wet processing environments such as meat packing or seafood facilities, this prevents the accumulation of standing water that can lead to sanitation issues. The airflow also helps maintain consistent temperature zones by reducing the pressure differentials that can occur with solid barriers.
Facilities that utilize clean-in-place protocols benefit from the compatibility of stainless steel chainmail with high-pressure washing, steam cleaning, and chemical sanitization. The material does not degrade under exposure to chlorinated cleaners, quaternary ammonium compounds, or peracetic acid solutions used in food safety programs. Unlike fabric curtains that may require removal and separate laundering, chainmail curtains can be cleaned without removal from the mounting structure, reducing downtime.
The unique combination of durability, flexibility, and hygiene makes stainless steel chainmail mesh curtains suitable for a diverse range of industrial applications.
In meat, poultry, and seafood processing facilities, chainmail curtains are installed between processing zones to separate raw and cooked product areas, control temperature differentials, and contain debris. The cut-resistant nature of the mesh prevents contamination from sharp tools or bone fragments while allowing workers and product conveyors to move freely between zones.
Facilities subject to USDA and FDA inspection requirements utilize stainless steel chainmail because the material meets food contact surface standards. The smooth, non-absorbent surface does not harbor pathogens, and the curtain can be incorporated into sanitation standard operating procedures.
High-volume commercial kitchens, including those in hotels, casinos, and institutional dining facilities, use chainmail curtains to separate dishwashing areas from food preparation zones, contain heat from cooking lines, and provide visibility across the kitchen. The durability of stainless steel withstands the high-temperature steam and cleaning chemicals common in commercial kitchen environments.
Additionally, chainmail curtains are installed in walk-in coolers and freezers to maintain temperature separation while allowing frequent access. Unlike plastic strip curtains that may stiffen and crack at low temperatures, chainmail remains flexible and does not become brittle.
Manufacturing facilities that produce abrasive materials, metal shavings, or sharp components utilize chainmail curtains to contain debris and protect adjacent work areas. The curtains are installed around machining centers, grinding stations, and assembly lines where fabric barriers would quickly wear through.
In welding and fabrication shops, chainmail curtains provide protection against sparks and spatter while allowing visibility and access. The non-combustible nature of stainless steel eliminates fire risk associated with fabric welding curtains.
Pharmaceutical manufacturing facilities require barriers that do not shed particles or fibers. Stainless steel chainmail does not generate lint or particulates, making it suitable for cleanroom applications where contamination control is critical. The material can be specified with smaller ring diameters to provide containment of fine powders while maintaining the cleanability required for regulated environments.
Cold storage operations utilize chainmail curtains at freezer entrances to minimize cold air loss while allowing forklift and personnel traffic. The curtain’s flexibility allows equipment to pass through without the need for automated doors, which can be subject to mechanical failure in low-temperature environments. Data from cold storage facilities indicate that properly installed chainmail curtains can reduce cold air loss by up to 75% compared to open doorways, contributing to energy efficiency.
Proper installation is critical to the performance and longevity of stainless steel chainmail mesh curtains. The weight of the curtain—typically ranging from 2 to 8 pounds per square foot depending on ring and wire specifications—requires appropriate structural support.
Chainmail curtains are most commonly installed using overhead track systems that allow the curtain to slide laterally. Track systems are fabricated from stainless steel or aluminum and include rollers or sliders that support the weight of the curtain while enabling smooth operation.
Roller Tracks: Roller tracks use wheeled carriages that travel within a channel. This configuration is suitable for heavier curtains and provides smooth operation even under load.
Slider Tracks: Slider tracks use plastic or metal sliders that glide within the channel. These are appropriate for lighter curtains and applications where operation frequency is moderate.
The mounting structure must be engineered to support the total weight of the curtain plus any dynamic loads from operation. Manufacturers provide load specifications to assist with structural planning.
In applications where lateral movement is not required, chainmail curtains can be fixed-mounted to door frames, wall openings, or equipment enclosures. Fixed mounting utilizes heavy-duty fasteners and tensioning systems to maintain the curtain in a taut configuration. This approach is common for equipment guarding and debris containment applications.
Industrial openings vary in dimension, and standard curtain sizes may not accommodate specific requirements. Manufacturers offer custom fabrication services to produce curtains in specified widths and heights. Custom fabrication also allows for the incorporation of reinforced edges, grommets for hanging, and integration with existing door systems.
Hebei Linchuan Safety Protective Equipment Co., LTD provides custom fabrication services based on dimensional specifications and application requirements, ensuring that the curtain matches the exact opening dimensions and operational needs.
The service life of a stainless steel chainmail mesh curtain is determined by the intensity of use, environmental conditions, and maintenance practices. Under typical industrial conditions, a properly specified chainmail curtain can provide service for a decade or more.
The primary wear mechanisms for chainmail curtains include:
Ring abrasion: Repeated flexing and contact with passing equipment gradually wears the contact surfaces of rings. This is a predictable, gradual process that does not result in sudden failure.
Corrosion: In environments with exposure to corrosive chemicals or saltwater, material selection must match the exposure level to prevent accelerated degradation.
Mechanical damage: Severe impacts exceeding the ring strength can cause individual rings to deform or break. Such damage is typically localized and can be repaired by replacing damaged rings.
Unlike fabric curtains that require complete replacement when damaged, chainmail curtains can be repaired. Individual rings can be replaced using specialized tools that open and close rings without compromising adjacent rings. This repairability extends the service life and reduces total cost of ownership.
Regular inspection intervals—typically quarterly in high-use environments—should include checking for deformed rings, corrosion spots, and wear on mounting hardware. Preventive maintenance that addresses minor issues before they escalate maintains the curtain’s performance and safety characteristics.
When evaluating the cost of a stainless steel chainmail mesh curtain, facility managers consider both initial investment and total cost of ownership.
Chainmail curtains represent a higher initial investment compared to fabric or plastic alternatives. Material costs are influenced by the grade of stainless steel, ring dimensions, wire gauge, and overall size. Custom fabrication and specialized mounting systems add to the initial expense.
Over a typical service life of ten years, chainmail curtains often demonstrate lower total cost of ownership than alternatives that require frequent replacement. Key factors include:
Replacement frequency: Fabric and plastic curtains may require replacement every one to three years depending on usage intensity. Chainmail curtains eliminate this recurring expense.
Downtime: Replacing damaged barriers requires facility downtime. The durability and repairability of chainmail minimize disruption to operations.
Energy efficiency: In temperature-controlled environments, the reduction in air exchange achieved by chainmail curtains contributes to ongoing energy savings.
Facility data from cold storage operations indicates that the energy savings from reduced cold air loss can offset a portion of the initial curtain investment within the first two to three years of operation.
Stainless steel chainmail mesh curtains contribute to workplace safety by providing physical separation that contains hazards and prevents cross-contamination. In regulated industries, compliance with safety and sanitation standards is a primary selection criterion.
For food processing applications, chainmail curtains must be fabricated from materials that comply with food contact regulations. Type 304 and 316 stainless steel meet the requirements of FDA food contact substance notifications and USDA standards for equipment used in federally inspected facilities.
Manufacturers should provide material certifications and, where applicable, documentation of compliance with relevant standards. Hebei Linchuan Safety Protective Equipment Co., LTD maintains documentation to support regulatory compliance for installations in inspected facilities.
In industrial environments, chainmail curtains serve as machine guarding and hazard containment. When installed to separate work zones, they reduce the risk of employee exposure to moving machinery, flying debris, and hazardous materials. The visibility afforded by the mesh structure allows operators to maintain awareness of adjacent work areas, contributing to overall safety.
The non-combustible nature of stainless steel chainmail provides advantages in fire safety compared to fabric barriers. Chainmail curtains do not contribute to fire load and do not emit toxic smoke when exposed to flame. In facilities with fire code requirements for non-combustible barriers, chainmail provides a compliant solution.
Selecting the appropriate stainless steel chainmail mesh curtain requires evaluation of several factors.
Temperature range (minimum and maximum)
Exposure to moisture, chemicals, or salt
Sanitation protocols and cleaning frequency
Frequency of passage through the curtain
Size and type of equipment passing through
Need for visibility across the barrier
Required impact resistance
Cut and abrasion resistance needs
Airflow and drainage requirements
Food safety standards if applicable
Fire code requirements
Industry-specific regulations
Working with a manufacturer that provides detailed specifications and application guidance ensures that the selected curtain matches the operational demands of the facility.
Stainless steel chainmail mesh curtains occupy a distinct position in industrial barrier systems, combining the flexibility of fabric with the durability and cleanability of metal. Their applications span food processing, commercial kitchens, industrial manufacturing, pharmaceutical cleanrooms, and cold storage facilities—environments where conventional barriers fail to meet the demands of rigorous operations.
The selection of a chainmail curtain requires careful consideration of material grade, ring dimensions, wire gauge, mounting systems, and environmental factors. Proper specification ensures that the curtain provides effective separation, withstands operational stresses, and meets regulatory requirements for hygiene and safety.
As a manufacturer of stainless steel chainmail products, Hebei Linchuan Safety Protective Equipment Co., LTD emphasizes the importance of matching product specifications to application requirements. By understanding the mechanical, hygienic, and economic characteristics of chainmail mesh curtains, facility managers and engineers can implement barrier systems that deliver long-term performance and value.
Whether the application involves temperature separation in freezer facilities, debris containment in manufacturing, or hygiene maintenance in food processing, stainless steel chainmail mesh curtains offer a solution that balances durability, flexibility, and compliance with industrial standards.
