Author: Site Editor Publish Time: 2026-01-23 Origin: Site

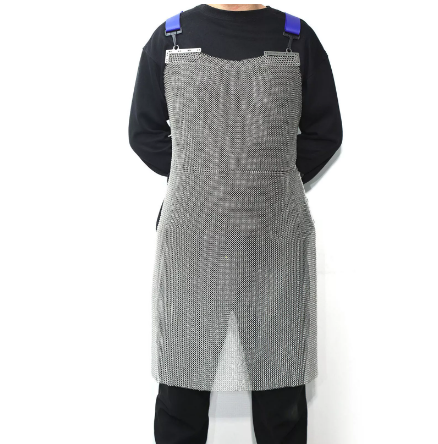

A chainmail apron is a personal protective equipment (PPE) garment, constructed from interlocked metal rings, designed to provide a durable barrier against cutting and lacerating hazards. Unlike aprons made from textile or leather, its primary function is to intercept sharp edges—such as knives, blades, or sheet metal—before they contact the wearer's body. Hebei Linchuan Safety Protective Equipment Co., LTD manufactures these aprons to address specific risks in industries like meat and fish processing, metal fabrication, and forestry, where traditional materials may be insufficient.
The performance foundation of a chainmail apron lies in its material composition. Most industrial-grade aprons use stainless steel, primarily grades AISI 304 or AISI 316.
AISI 304 Stainless Steel: Contains approximately 18% chromium and 8% nickel. This composition offers general corrosion resistance, suitable for environments with organic acids and typical processing fluids.
AISI 316 Stainless Steel: Includes an additional 2-3% molybdenum, significantly enhancing resistance to pitting and crevice corrosion from chlorides, which is critical in seafood processing or environments with saline or bleach-based sanitizers.
The corrosion resistance is quantified through standard salt spray testing (e.g., ASTM B117). While results vary by exact alloy and finish, AISI 304 may withstand 48-96 hours of neutral salt spray exposure before initial red rust appears, whereas AISI 316 typically exceeds 96 hours under the same conditions. Some applications may use nickel-plated or galvanized steel rings for cost-effective resistance in less corrosive environments.
The protective capability is determined by the ring geometry and assembly method.
Ring Specifications: Key metrics include wire diameter and inner ring diameter (ID). A common specification for cut-resistant aprons is a wire diameter of 0.8 mm to 1.2 mm, forming rings with an ID of 6 mm to 10 mm. Thicker wire and smaller IDs increase weight and rigidity but enhance cut resistance.
Weave Pattern: The 4-in-1 European weave (where each ring links through four others) is the standard for aprons. It creates a balanced fabric that is flexible enough to drape over the body while maintaining coverage and integrity upon impact.
Construction Features: A full apron typically consists of a large body section with integrated or attached bib. Shoulder straps and waist ties are made from durable, cleanable synthetic webbing. Seams are often reinforced with a strip of leather or a double layer of mail. The total weight of a standard apron can range from 2.5 kg to 4.5 kg, influencing wearer fatigue and necessitating ergonomic design in strap placement.
The efficacy of chainmail aprons is evaluated through standardized mechanical tests.
Cut Resistance (EN 388:2016): This is the most relevant standard. While chainmail is not tested identically to textiles, its performance is assessed in use. The material provides a physical barrier that typically exceeds the highest level (Level 5, index >20) on the Coupe cut test used for gloves. The mesh dissipates the energy of a slicing motion across multiple rings.
Puncture Resistance (EN 388): Chainmail offers high puncture resistance against sharp, pointed blades, with performance again typically at the maximum level (Level 4) due to the ring's ability to deflect and grip the point.
Tensile Strength: The interlocked structure provides high strength. Individual rings made from 1.0 mm AISI 304 wire can have a tensile breaking strength exceeding 700 Newtons. The weave pattern ensures that a localized load is distributed across adjacent rings.
Chainmail aprons are deployed in specific high-hazard zones:
Meat, Poultry, and Fish Processing: They protect workers during manual boning, trimming, and cutting operations, where sharp knives are used at high speed and force. The smooth, hard surface is also easier to clean and sanitize compared to porous materials.
Metalworking and Stamping: They offer protection against sharp edges on sheet metal, stamped parts, and during manual handling of metal components.
Woodworking and Forestry: In chainsaw operation (as an under-apron) or during manual logging, they can provide a secondary defense against accidental blade contact.
Butchery and Culinary Arts: In professional, high-volume butcher shops, they serve as essential PPE.
Practical use requires consideration of several factors:
Ergonomics and Fit: The weight of the apron must be managed through wide, padded shoulder straps and a secure waist tie to transfer load to the hips. Proper sizing is crucial to ensure coverage of the torso and upper legs without restricting necessary movement.
Cleaning and Sanitation: For food industry compliance, aprons must be cleaned and disinfected daily. They are designed to withstand immersion in industrial dishwashers, hot water with detergents, or steam cleaning. AISI 316 steel is often specified for its superior resistance to harsh cleaning chemicals.
Limitations: Chainmail is designed specifically for cut and puncture hazards. It does not provide significant protection against impact crush injuries, extreme temperatures, or electrical hazards. It is also not designed for protection against powered blades like band saws or circular saws.
The chainmail apron remains a specialized and effective engineering solution for predictable, high-frequency cutting hazards. Its value is derived from the measurable physical properties of its materials and construction, not from claims of universal superiority. For Hebei Linchuan Safety Protective Equipment Co., LTD, the focus is on manufacturing aprons with precise material grades, consistent ring geometry, and durable assembly to meet the documented needs of defined industrial processes. Proper selection requires a thorough hazard assessment to ensure its properties match the specific risks present.
ASTM International. *ASTM B117-19, Standard Practice for Operating Salt Spray (Fog) Apparatus*. West Conshohocken, PA: ASTM International, 2019.
European Committee for Standardization (CEN). *EN 388:2016+A1:2018, Protective gloves against mechanical risks*. Brussels: CEN, 2018.
ASM International. "Stainless Steels." In *ASM Handbook, Volume 1: Properties and Selection: Irons, Steels, and High-Performance Alloys*. Materials Park, OH: ASM International, 1990.
U.S. Department of Agriculture, Food Safety and Inspection Service (FSIS). Guidelines for the Use of Chain Mail Aprons and Gloves to Protect Against Knife Cuts in Meat and Poultry Establishments. Washington, D.C.: USDA, 2016.
Data sheets for mechanical properties of AISI 304 and AISI 316 stainless steel wire from industry sources (e.g., Outokumpu, Sandvik).
