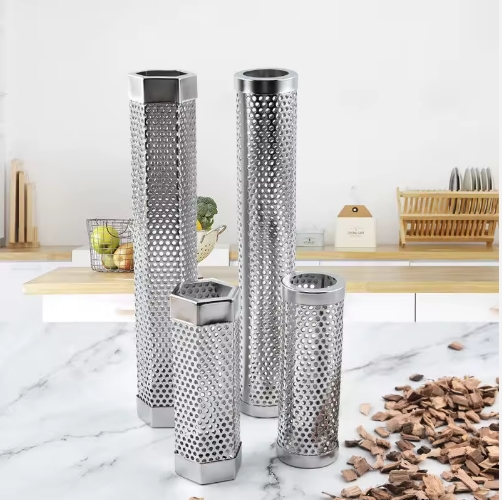

A BBQ smoke tube is a stainless steel cylindrical device that allows barbecue users to generate continuous smoke for extended periods. Unlike traditional wood chip trays or electric smokers, a smoke tube operates without external power and can produce smoke for three to five hours per fill.
The working principle involves filling the tube with wood pellets or fine wood chips, igniting one end, and allowing the smoldering process to propagate through the fuel column. This method produces a steady stream of cold smoke, which is particularly useful for adding flavor to cheeses, nuts, salt, vegetables, and meats without applying additional heat.
For barbecue enthusiasts who own gas grills or standard charcoal grills, a smoke tube bridges the gap between convenience and authentic smoke flavor. The device requires no permanent modification to existing equipment and can be placed directly on the cooking grate or below it.
Hebei Linchuan Safety Protective Equipment Co., LTD examines the technical specifications, material properties, and operational parameters of BBQ smoke tubes to help users select appropriate products for their specific applications.
The combustion process inside a smoke tube differs fundamentally from open flame burning. When wood pellets ignite, they enter a smoldering phase where oxygen availability is restricted by the tube geometry and the density of the packed fuel.
Smoldering is a flameless form of combustion that occurs on the surface of solid fuels. For wood pellets in a smoke tube, the smoldering front advances at a rate between 5 and 12 millimeters per minute, depending on pellet moisture content, packing density, and ambient airflow.
Temperature measurements at the smoldering zone typically reach 400 to 550 degrees Celsius. However, the outer surface of the smoke tube remains significantly cooler. For a standard 304 stainless steel tube with 2mm thickness, the external temperature during operation ranges from 80 to 120 degrees Celsius at a distance of 10 millimeters from the smoldering zone.
The holes drilled along the smoke tube serve a critical function: they create a controlled air pathway that sustains smoldering without allowing full combustion. Each hole typically measures between 6 and 8 millimeters in diameter, and the spacing between holes affects burn rate.
Testing data indicates that a smoke tube with six rows of 6mm holes spaced 25mm apart produces a burn duration approximately thirty percent longer than a tube with four rows of 8mm holes. The smaller holes restrict oxygen flow, slowing the propagation of the smoldering front.
Smoke production follows a predictable pattern over time. During the first fifteen to twenty minutes after ignition, smoke output is highest as the initial fuel volume burns. Output then stabilizes for the next two to three hours before gradually decreasing during the final hour of operation.
For a standard 300mm long by 50mm diameter smoke tube filled with hardwood pellets, total smoke production averages 180 to 220 grams of particulate matter over a four hour burn. This volume is sufficient to impart noticeable smoke flavor to up to five kilograms of food placed inside a covered gas grill.
The material selection for a smoke tube directly affects its durability, heat resistance, and food safety profile. Most commercially available smoke tubes use either 304 or 430 stainless steel grades.
304 stainless steel is an austenitic alloy containing 18 to 20 percent chromium and 8 to 10.5 percent nickel. The nickel content provides corrosion resistance superior to lower grade stainless steels. For barbecue applications where the tube may contact acidic foods or marinade drippings, the nickel component prevents pitting corrosion.
The maximum continuous service temperature for 304 stainless steel in air is approximately 870 degrees Celsius. This rating far exceeds the external surface temperature of an operating smoke tube, which typically remains below 250 degrees Celsius even under direct flame exposure.
Thermal expansion for 304 stainless steel measures 17.2 micrometers per meter per degree Celsius. This relatively low expansion rate means the smoke tube will not warp or deform significantly during repeated heating and cooling cycles.
430 stainless steel is a ferritic alloy containing 16 to 18 percent chromium and no nickel. The absence of nickel reduces material cost by approximately thirty to forty percent compared to 304 grade.
The maximum continuous service temperature for 430 stainless steel is 815 degrees Celsius, slightly lower than 304 but still adequate for smoke tube applications. However, the corrosion resistance of 430 is inferior, particularly in environments containing chlorides or acidic compounds.
Thermal expansion for 430 stainless steel measures 10.4 micrometers per meter per degree Celsius, which is actually lower than 304. This property gives 430 better dimensional stability under temperature cycling.
Both 304 and 430 stainless steel are generally recognized as safe for food contact applications. The key difference lies in long term corrosion behavior. After fifty to one hundred hours of exposure to barbecue smoke containing acetic acid and other organic compounds, 304 stainless steel shows minimal surface oxidation. Under identical conditions, 430 stainless steel may develop superficial rust spots, particularly near the drilled holes where condensation collects.
Hebei Linchuan Safety Protective Equipment Co., LTD recommends 304 stainless steel for smoke tubes intended for frequent use exceeding one hundred hours per year. For occasional users, 430 stainless steel provides adequate performance at a lower price point.
Smoke tubes are available in various lengths and diameters. The selection of appropriate dimensions depends on intended smoke duration and the available space inside the grill or smoker.
A small smoke tube measuring 150mm in length by 40mm in diameter holds approximately 80 to 100 grams of wood pellets. This configuration produces smoke for ninety minutes to two hours. It fits inside compact gas grills and portable smokers.
A medium smoke tube measuring 300mm in length by 50mm in diameter holds 200 to 250 grams of pellets. Burn duration ranges from three to four hours. This is the most popular size for backyard gas grills with cooking areas between 200 and 400 square centimeters.
A large smoke tube measuring 400mm in length by 60mm in diameter holds 350 to 450 grams of pellets. Burn duration reaches five to six hours. This size is suitable for offset smokers and large barrel grills.
The relationship between fuel mass and burn time is approximately linear for smoke tubes. Each 50 grams of hardwood pellets produces sixty to seventy minutes of smoke, assuming standard pellet moisture content of 8 to 10 percent.
Moisture content significantly affects burn duration. Pellets dried to 6 percent moisture burn approximately fifteen percent faster than pellets at 10 percent moisture because less energy is consumed evaporating water. Conversely, pellets at 12 percent moisture may self-extinguish because the excess water lowers the smoldering temperature below the combustion threshold.
A smoke tube requires clearance from direct flame contact. When placed on the cooking grate, a minimum distance of 50mm from the heat source is recommended. Direct flame impingement raises the tube surface temperature above 300 degrees Celsius, which can accelerate the smoldering rate and reduce burn duration by thirty to forty percent.
For gas grills, the preferred placement is on the cooking grate above an unlit burner. This configuration allows the smoke tube to receive indirect heat while the other burners provide cooking temperature.
Proper operation of a BBQ smoke tube requires attention to ignition procedure, placement, and airflow management.
The most reliable ignition method uses a propane torch applied to one end of the filled tube for thirty to forty five seconds. The flame should contact the pellet surface directly. After removing the torch, the user should observe the pellets for continued smoldering, visible as a glowing ember and thin smoke stream.
If the smoldering does not sustain after one minute, additional torch application for fifteen seconds usually resolves the issue. The user should avoid using lighter fluid or alcohol based accelerants, as these produce volatile organic compounds that may contaminate food flavor.
After ignition, a two minute waiting period allows the smoldering front to establish. During this time, the user should place the smoke tube inside the grill and close the lid. Opening the lid during the first ten minutes can cause the smoldering to extinguish due to sudden temperature changes.
Grill vents should remain partially open during smoke tube operation. Complete closure of all vents reduces oxygen availability below the level required to sustain smoldering. Data from controlled tests show that a smoke tube extinguishes within fifteen to twenty minutes when placed inside a sealed chamber with no ventilation.
The recommended vent position is thirty to fifty percent open on the intake side and fifty to seventy percent open on the exhaust side. This configuration maintains adequate oxygen flow while minimizing heat loss from the cooking chamber.
For cold smoking applications where food temperature must remain below 30 degrees Celsius, the smoke tube should be placed in a separate chamber or at the maximum distance from the food. Using a smoke tube inside a standard gas grill without any burner operating will raise the internal temperature by only 5 to 10 degrees Celsius, which is acceptable for cheese and cold smoked fish.
For comparison, an electric smoker operating at its lowest setting typically maintains 65 to 80 degrees Celsius, which is too hot for cheese and will cause melting. The smoke tube thus provides a genuine low temperature smoking option that other equipment cannot easily replicate.
The choice of fuel material significantly affects smoke flavor profile, burn duration, and particulate output.
Hardwood pellets are the most common fuel for smoke tubes because of their uniform size and consistent moisture content. Standard pellets measure 6mm in diameter and 10 to 30mm in length. The manufacturing process compresses sawdust under high pressure, which activates natural lignins that bind the material without artificial additives.
Pellet density averages 600 to 700 kilograms per cubic meter. This high density contributes to the extended burn duration compared to loose wood chips. A smoke tube filled with pellets produces smoke for approximately twice as long as the same tube filled with chips of equivalent mass.
Different wood species produce different flavor profiles. Hickory pellets generate a strong, savory smoke suitable for beef and pork. Apple and cherry pellets produce a milder, sweeter smoke preferred for poultry and vegetables. Mesquite pellets have the highest smoke intensity and are typically used for short smoking sessions of thirty to sixty minutes.
Wood chips are an alternative fuel for smoke tubes, particularly when a shorter smoke duration is desired. Chips should be broken or cut into pieces no larger than 10mm in any dimension to ensure proper packing and consistent smoldering.
The moisture content of wood chips varies widely. Chips labeled as dry typically contain 10 to 15 percent moisture, while chips sold as pre-soaked may contain 30 to 40 percent moisture. For smoke tube use, chips should be used dry. Pre-soaked chips will not sustain smoldering because the excess water prevents the temperature from reaching the combustion point.
Some users create layered fuel configurations by placing pellets at the bottom of the tube and chips on top. This arrangement produces an initial smoke phase from the chips, which burn faster and produce more volatile compounds, followed by a longer phase from the pellets. The transition between fuel types occurs without user intervention and can add complexity to the smoke profile.
While smoke tubes are generally safe devices, certain conditions require attention to prevent equipment damage or personal injury.
The external surface temperature of a smoke tube during operation varies with position. At the smoldering end, surface temperatures reach 200 to 250 degrees Celsius. At the opposite end, temperatures remain below 80 degrees Celsius.
Users should handle the smoke tube only after allowing a thirty minute cooling period. Touching the smoldering end during operation can cause second degree burns within one second of contact.
The smoke tube should not contact plastic or rubber components inside the grill. Gas grill ignition wires, temperature sensor probes, and plastic handle components typically have maximum service temperatures between 80 and 120 degrees Celsius. Direct contact with the smoke tube can exceed these ratings and cause component failure.
A simple protective measure involves placing the smoke tube on a small piece of aluminum foil folded to create a 5mm air gap between the tube and any sensitive components. The air gap reduces heat transfer by conduction.
After the smoke tube completes its burn, residual ash remains inside the cylinder. The ash mass typically equals 2 to 3 percent of the original fuel mass. For a 250 gram pellet fill, this produces 5 to 7.5 grams of fine ash.
The user should empty the ash into a metal container with a lid after the tube has cooled completely. Ash should never be disposed of in plastic trash bags while warm, as residual embers can survive for up to 24 hours inside compacted ash and may ignite the bag.
A smoke tube should be stored in a dry location away from flammable materials. Residual wood dust inside the tube can absorb atmospheric moisture and promote corrosion. Before storage, the user should tap the tube inverted to remove loose particles and wipe the exterior with a dry cloth.
When evaluating smoke tubes for purchase, several physical characteristics indicate manufacturing quality and expected service life.
The longitudinal seam weld of a smoke tube should be continuous and free of visible porosity. Poor welds create crevices where moisture accumulates, accelerating localized corrosion. A high quality weld appears as a slightly darker line with no pits or gaps.
The end caps should be welded or mechanically attached with no gaps larger than 0.5mm. Gaps allow ash to escape during operation and may permit oxygen entry that disrupts the smoldering process.
The holes drilled along the tube length should be consistent in diameter and spacing. Variations exceeding 1mm in diameter or 5mm in spacing indicate poor manufacturing control and may produce uneven smoke output.
The edges of each hole should be deburred. Sharp edges can abrade the user's hands during handling and may catch on grill grates. A simple finger test across the holes should detect no sharp protrusions.
Smoke tube wall thickness typically ranges from 0.8mm to 2.0mm. Thinner tubes weigh less and heat up faster but are more susceptible to denting during handling. Thicker tubes resist deformation but require more time to cool after use.
For most users, a wall thickness of 1.2mm provides an optimal balance between durability and thermal responsiveness. This thickness withstands accidental drops from counter height without permanent deformation.
Understanding how smoke tubes compare to other smoke generating devices helps users select appropriate equipment for their needs.
An electric smoker uses a heating element to vaporize wood chips at a controlled temperature between 100 and 150 degrees Celsius. This method produces consistent smoke but consumes 300 to 500 watts of electricity per hour of operation. A smoke tube requires no electricity but produces less consistent smoke density over time.
For users who smoke food less than once per week, the smoke tube has lower total cost of ownership. For users who smoke multiple times per week, the electric smoker provides convenience that may justify the higher initial purchase price.
A smoking box is a small perforated metal container placed directly on the heat source of a gas grill. The high temperature causes the wood chips inside to produce smoke rapidly, but the chips typically burn completely within twenty to thirty minutes. To maintain smoke for a three hour cook, the user must refill the box five to six times.
A smoke tube placed away from direct heat produces smoke continuously for three to five hours without refilling. The smoke tube thus requires less user attention during the cooking process.
A pellet tray is a flat metal tray with rows of holes that allow a smoldering front to travel along a linear path. Pellet trays produce smoke for longer durations than tubes of equivalent fuel capacity because the open geometry allows more oxygen contact. However, pellet trays require a perfectly level placement surface, and the smoldering front may extinguish if the tray is tilted even slightly.
A smoke tube operates in any orientation and continues functioning even if the grill rack is not perfectly level. This makes the smoke tube more forgiving for users with older or uneven grills.
Proper maintenance extends the service life of a smoke tube and maintains consistent performance.
After each use, the user should empty the ash completely. Tapping the tube against a hard surface while inverted removes most loose ash. For deeper cleaning, a bottle brush with nylon bristles can scrub the interior walls.
The exterior should be wiped with a damp cloth to remove smoke residue. Steel wool or abrasive pads should not be used, as these can scratch the surface and create sites for corrosion initiation.
Even 304 stainless steel can develop surface rust under certain conditions. Leaving a smoke tube exposed to rain or sprinkler water introduces chlorides that attack the passive oxide layer. Storing the tube in a dry location prevents this type of corrosion.
If superficial rust spots appear, they can be removed with a stainless steel cleaner or a paste of baking soda and water. The user should apply the cleaner with a soft cloth, rinse thoroughly, and dry completely before the next use.
For a 304 stainless steel smoke tube used twice per month and cleaned after each use, the expected service life exceeds ten years. The primary failure mode is not material degradation but rather physical damage such as dents or bent end caps.
For a 430 stainless steel smoke tube under the same usage pattern, the expected service life is three to five years before visible pitting corrosion appears. The tube remains functional after pitting appears, but the surface becomes rougher and more difficult to clean.
Users occasionally encounter operational problems with smoke tubes. Most issues have simple solutions.
If the smoke tube stops smoldering within thirty minutes of ignition, the most likely cause is insufficient oxygen. The user should open the grill vents further or move the tube closer to a vent opening.
Low quality pellets with high moisture content can also cause premature extinguishing. Testing the pellet moisture content by squeezing a handful in a sealed plastic bag for twenty four hours can reveal condensation on the bag interior, indicating excess moisture.
When the smoke tube produces thick white smoke rather than thin blue smoke, the fuel is undergoing incomplete combustion. This occurs when the smoldering temperature drops below 400 degrees Celsius due to insufficient oxygen or wet fuel.
The solution involves increasing airflow by opening vents and ensuring the pellets are stored in a dry location. Thick white smoke contains creosote compounds that can deposit on food and create bitter flavors.
If the smoldering front advances faster on one side of the tube than the other, the tube may be tilted. Placing the tube on an uneven grill grate can cause pellets to shift toward the lower side, creating a density gradient that affects oxygen distribution.
The user should check the tube orientation and adjust the placement until the tube rests level. A simple bubble level placed on the tube confirms proper orientation.
The BBQ smoke tube is a practical device for adding smoke flavor to foods cooked on gas grills, charcoal grills, and dedicated smokers. Its operation relies on the controlled smoldering of wood pellets or chips within a perforated stainless steel cylinder. The smoldering process produces consistent smoke for periods of three to five hours per fill without requiring external power.
Material selection significantly affects durability, with 304 stainless steel providing superior corrosion resistance compared to 430 grade. Dimensional selection depends on intended smoke duration, with larger tubes holding more fuel and producing longer burns. Proper operation requires attention to ignition procedure, airflow management, and placement away from direct flame contact.
For users seeking to expand their barbecue capabilities, a smoke tube represents a low cost addition that enables cold smoking and extended smoke generation on existing equipment. When maintained properly, a quality smoke tube from a reputable manufacturer provides years of reliable service.
